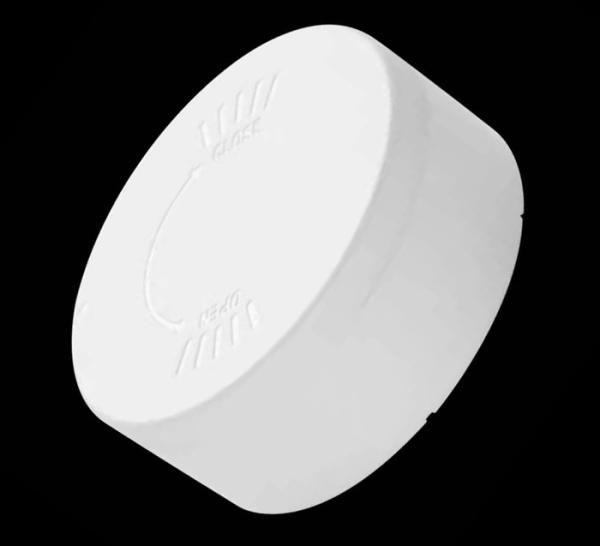

2483.5MHz Bluetooth BLE Beacon

Brand Name : Createk

Model Number : ITBB802-PA

Certification : CE, RoHS, FCC, KC

Place of Origin : China

MOQ : 36 pcs

Payment Terms : T/T, Western Union

Supply Ability : 100k pcs/ month

Delivery Time : 4 weeks

Price : USD8.6

Packaging Details : Carton

Bluetooth : 4.2

Chipset : 8811 new chipset

App : Yes, Createk APP for setting

Distance : 80 meters

Dimension : 53.86*24.93 mm

Working Temp : -40℃~85℃

Battery : ER14250 2*1200 mAh

Waterproof : IP67

Acceleration sensor : Yes

Contact Now

Bluetooth Beacon with New chip 8811 broadcast UUID, Major Minor reach 80 meters 3M glue IP67 acceleration sensor

Model Name: ITBB802-PA

Bluetooth beacon ITBB802_standard_8811_waterproof_acceleration

Product Overview

The low-power Bluetooth beacon ITBB802 is developed and produced based on the low-power Bluetooth chip. It is powered by two ER14250 batteries and can be used for up to 3 years (500ms broadcast once).

ITBB802 can broadcast UUID, Major, Minor, RSSI, battery power, Bluetooth name, Bluetooth MAC address and other information, among which UUID, Major, Minor, Bluetooth name can be set through the mobile APP.

The broadcasting distance of ITBB802 can reach 80 meters (when the transmitting power is 4dBm), and the use of 3M glue can facilitate installation and fixation.

Specification:

Hardware Parameters

Hardware parameters
Antenna PCB Antenna
Battery ER14250 2*1200mAh
Voltage 3.6V
Dimensions (D×H) 53.86*24.93mm
Wireless Performance
Wireless standard Bluetooth ® 4.2
Frequency range 2400MHz---2483.5MHz
Data rate 1Mbps
Modulation mode GFSK Modulation
Encryption AES HW Encryption
Transmission power Tx Power -20 to +4 dBm in 4 dB Steps
Reveiving sensitivity -93dBm at 1 Mbps BLE
Work mode Peripheral
Other

Environment

 Working temperature: -40℃~85℃
Storage temperature: -40℃~85℃
Working humidity: 10%~90% Non-condensing
Storage humidity: 5%~90% Non-condensing

Temperature and humidity indicators(for Bluetooth beacons with temperature and humidity sensors)
Measurement accuracy of humidity ±1.5 %RH
Humidity measurement resolution 0.01 %RH
Temperature measurement accuracy ±0.1 ℃ (20℃-60℃)
Temperature measurement resolution 0.015 ℃
Temperature measurement range -40~125 ℃
